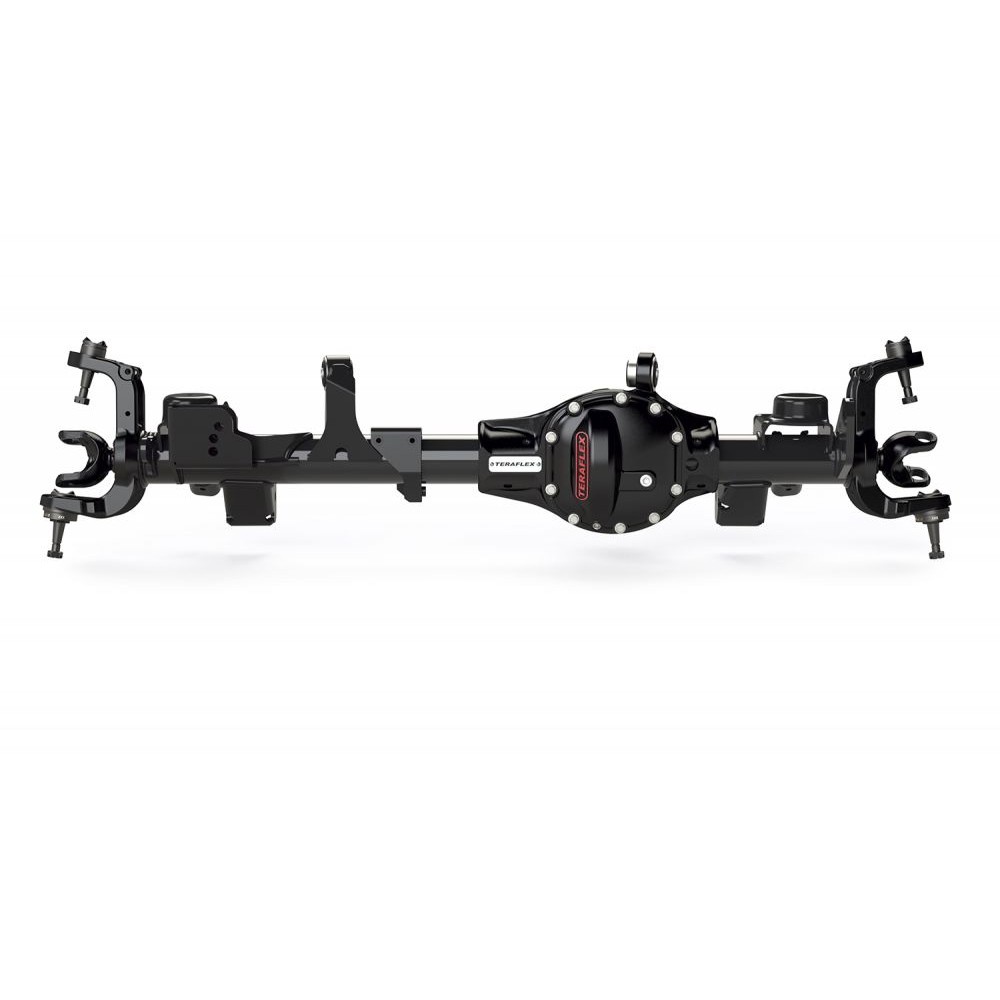

TeraFlex Tera30 Lift 0-5″ Front Axle Housing

Description

• 3.25" diameter, 0.5" thick housing adds strength to resist bending
• 66.5″ WMS–WMS
• Fits wheels with a 5×5″ bolt pattern
• Asymmetric housing design
• The set includes mounted driveshafts with a 27-tooth spline.
• Reinforced steering knuckles
• Cast iron housing with double reinforcement ribs
• Bridge cover made of ductile iron
• Smooth, curved design for smooth gliding over rocks and obstacles
• Integrated lower control arm skid plates
• High-flow oil passages and bottom oil drain holes for easy oil change
• Three-layer UV powder coating for corrosion resistance
• 1/4″ thick CNC laser cut handle
• Integrated factory upper control arm mount
• Upper control arm bushings installed
• Pre-drilled holes for restraining straps and spring protectors
• Maintains ESP, ABS and speed sensor functionality

Comments:

• Remember to transfer the already installed internal components of your car's axle (axle ratios, axle shafts) and external components (steering knuckles, pins, bearings, brakes, sensors) to the new housing!
• Compatible with Dana 30 AdvanTEK (M186) internal accessories
• Does not work with the front driveshaft disconnect mechanism
• The factory front inner right axle shaft does not fit the Tera30 HD front axle housing.
