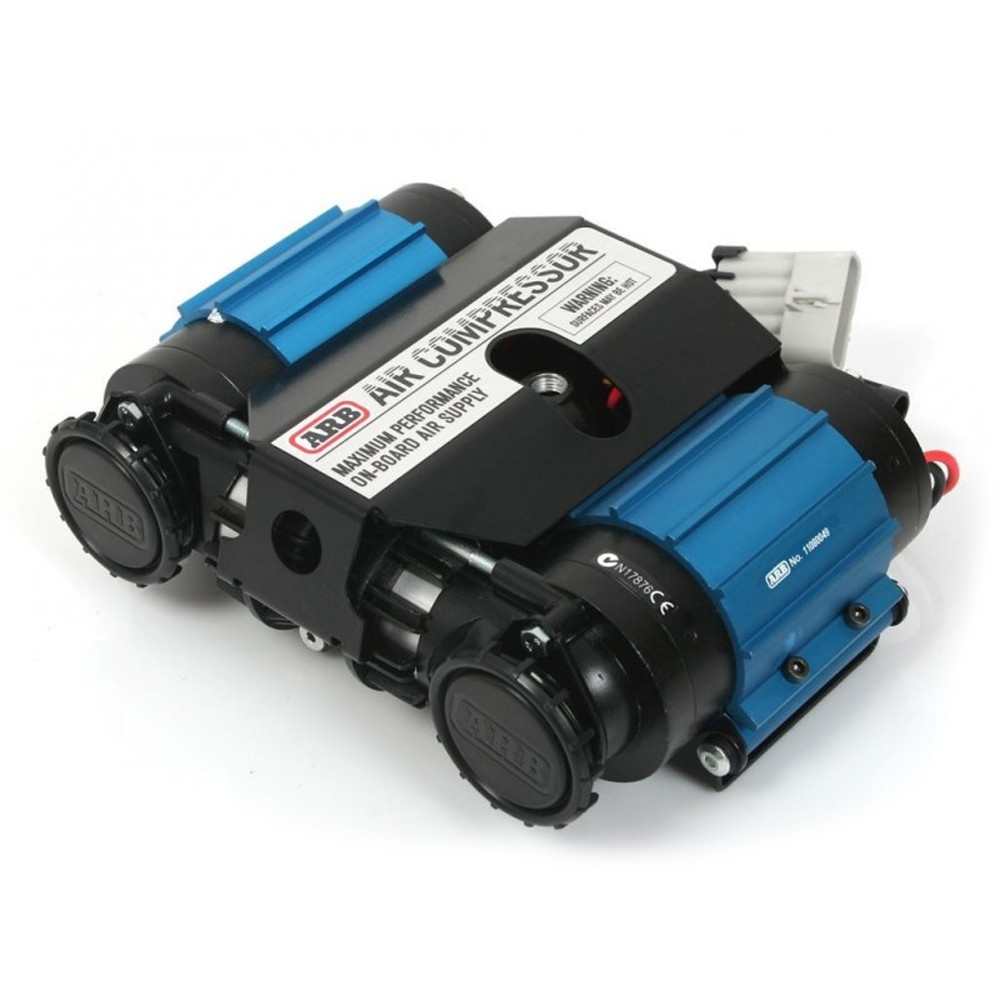

CKMTA12 12V ARB compressor

Description

• Compressor motor overheating protection: yes
• Overload protection in the harness: yes
• Weight: 8.8 kg
• Power supply: 12V
• Operating range: 9.3 – 10.3 bar
• Maximum current consumption: 56 A
• Power consumption:
  • no load: 28 A
  • under load: 51 A
• Efficiency:
  • no load: 174.3 l/min.
  • under load (at 200kPa) 131.7 l/min.
• Efficiency: 100%

Dimensions:

• (height x length x width): 102 x 190 x 275 [mm]

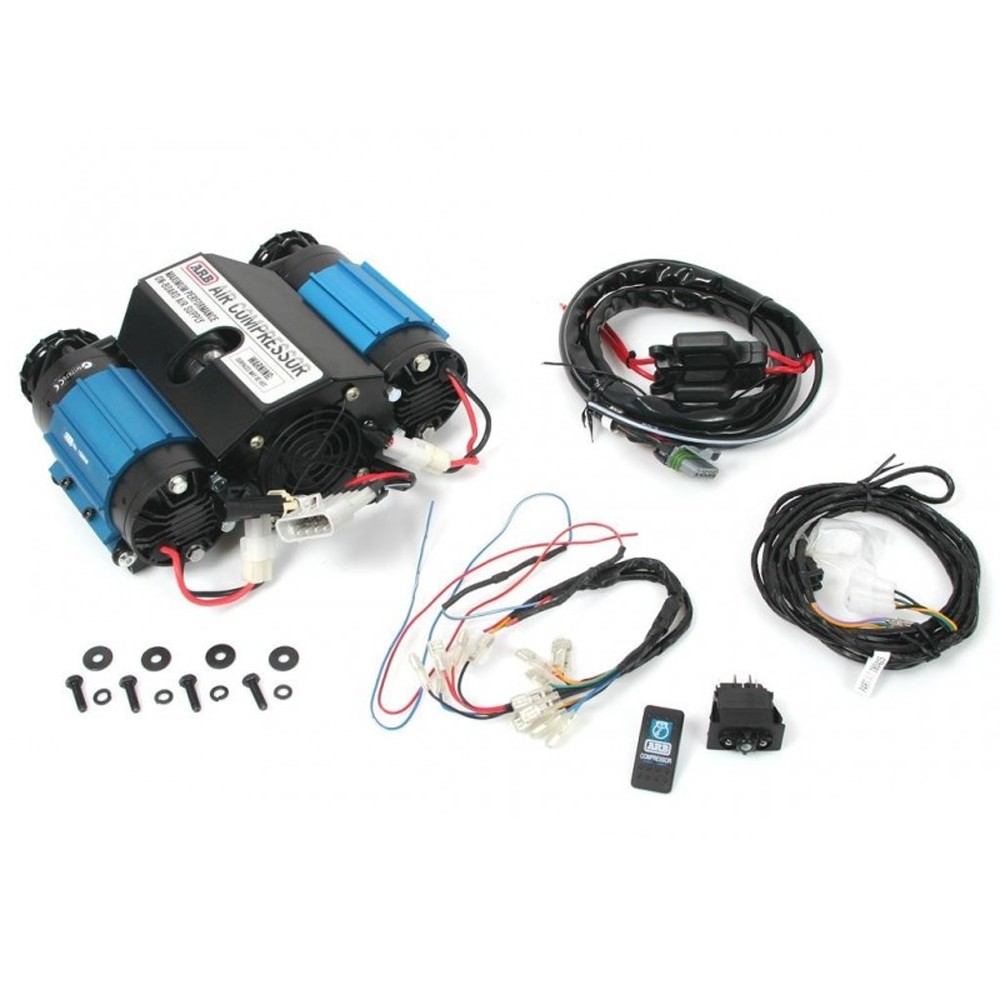

Included in the set:

• Compressor
• Air filter
• Pressure switch
• Electric switch for the car cabin
• Complete electrical harness

Comments:

• The reservoir kit (ARB171503, sold separately) is required to properly control compressor lock-outs, adjustable shock absorbers, or other devices that will be mounted to the compressor
• If you replace an old compressor (CKxx series) with a CKMTA, the old harness will be compatible with the new compressor
