Base kit TeraFlex Lift 3.5″ Diesel

Description

• The basic kit to lift your car
• Improves off-road driving characteristics
• Increases ground clearance
• Easy assembly

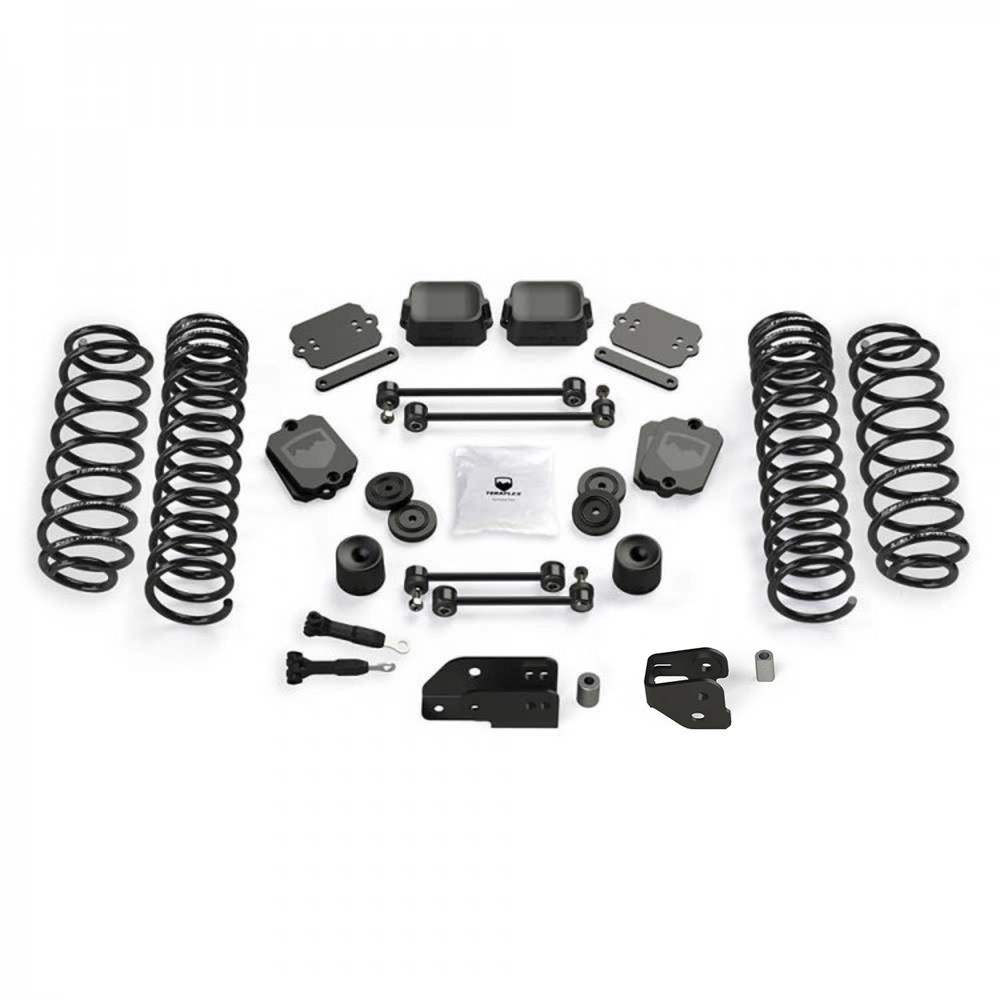

Included in the set:

• (2) Front lift spring 3.5″
• (2) Rear lift spring 3.5″
• (2) Front bumper
• (4) Front bump stop washer
• (2) Rear bumper
• (4) Rear bump stop pad
• (2) Rear bump stop pad holder
• (2) Front stabilizer link
• (2) Rear stabilizer link
• Front Panhard rod relocation
• Rear Panhard rod relocation
• Relocation of the front brake hose mounting
• Mounting kit

Comments:

• Only fits for diesel models
• Requires wheels with 4.75” or less backspacing or TX1057000 wheel spacers for stock wheels (sold separately)
• Models with plastic bumpers require fairing/mudguard removal to fit 35" or larger tires
• Sport/Sahara requires 3″ front and 2.5″ rear bump stop extensions and shims (included) to fit 35-inch tires
• Rubicon requires 2″ front and 2″ rear bump stop extensions (included) to fit 35-inch tires
• Rubicon requires 2.5" front and 3" rear bump stop extensions and shims (included) to fit 37" tires”
• Alignment required after installation
• The TX1938115 Sport Heavy Duty Frame Reinforcement Kit reinforces the front control arm mounts to the Sport frame. Recommended but not required
• Requires longer shocks (sold separately), Falcon Performance Series shocks recommended
